Key Takeaways
- Buy A Length stocks popular aluminium channel profiles including U channel and equal/unequal channel sizes.
- All aluminium channels are supplied in commercial-grade alloys (6060, 6063, 6061) suitable for Australian conditions, with mill finish and anodised options available.
- Custom cut-to-size service means you get exact lengths in millimetres, reducing onsite labour and offcuts.
- Fast dispatch within 1–2 business days for in-stock channels, with delivery coverage across metro and regional Australia.
Introduction to Aluminium Channel
Aluminium channels are U-shaped and C-shaped extrusions used for framing, edging, and support across construction, glazing, joinery, transport, and shopfitting applications.
Channels are defined by their cross-sectional shape, each serving a specific mechanical purpose—whether that’s retaining glass panels, protecting edges, or providing lightweight structural framing.
This article is focused on helping Australian professionals quickly choose the right aluminium channel and order online.
Buy A Length supplies straight lengths and custom cut aluminium channel in common architectural and structural grades, primarily in mill finish with finishing options available on request.
Aluminium channel extrusions can be supplied in a variety of grades, including architectural alloy and structural alloy, according to AS/NZS 1866:1997.
For coastal and exterior environments, correctly specified aluminium channels provide inherent corrosion resistance without requiring additional protective coatings.
Already know what you need? Skip ahead to the aluminium channel category and start your order now.
Ready to order? Browse aluminium channel online at buyalength.com.au
What Is Aluminium Channel?
Aluminium channel is a U or C profile with two flanges and a web, produced by extrusion for consistent dimensions and straightness.
Aluminium channels are typically produced by extrusion and come in various shapes, including U-channels and C-channels—the extrusion process ensures tight tolerances and uniform wall thickness across long lengths.
Key profile types:
- Equal channel – flanges of equal height on both sides, ideal for symmetrical framing and decorative trims
- Unequal channel – flanges of different heights, used where one side needs greater depth for gaskets or substrate fit
- U-channel – the most common profile for glazing, edge protection, and sliding tracks
Buy A Length focuses on the most commonly specified architectural and general-purpose profiles used in Australian projects, keeping stock simple and reliable.
Typical alloys and tempers include:
- 6063 T5/T6 – ideal for architectural applications with superior surface finish
- 6061 T5/T6 – known for its strength and durability in heavy-duty applications
- 6060 T5 – commonly used for glazing and lighter structural work
Common alloy types for aluminium channels include 6063, which is ideal for architectural applications, and 6061, which is known for its strength and durability in heavy-duty applications.
Aluminium channels are often used as a more durable or lighter alternative to steel due to their high strength-to-weight ratio and natural corrosion resistance.
At roughly one-third the weight of steel, aluminium reduces handling effort and transport costs while maintaining the strength needed for most framing and edging applications.
Common Aluminium Channel Applications
Most professionals reading this already use aluminium channel regularly. Here’s a quick breakdown of where these profiles fit across Australian projects:
Building and Construction
- Framing for non-structural partitions and demountable walls
- Window and door framing details
- Edge trims and stair nosing supports
- Ceiling grid interfaces and suspended ceiling frameworks
Aluminium channels are lightweight, durable, and versatile, making them suitable for a variety of applications including construction, manufacturing, and transportation.
Glazing and Façade Work
- Perimeter framing for glass panels
- Balustrade and pool fencing channels
- Shopfront and curtain wall details
- Aluminium channels can be used in glazing applications, accommodating various glass thicknesses for both single and double glazing
U-channels are widely used for tracks, railings, and framing glass panels, while C-channels are used for horizontal supports where a sliding element needs to be retained.
Joinery and Cabinetry
- Sliding track components for wardrobes and doors
- Cabinet framing and shelving supports
- Decorative trims and edge protection
- LED strip lighting channels where applicable
Transport and Marine
- Tray body edging on utes and trucks
- Caravan and camper fitouts
- Boat interiors and light-duty framing
These channels are commonly used for edge protection, sliding type supports, light construction projects, decoration, shop fittings, vehicle construction, and boat building.
Weight saving is critical in transport applications—aluminium delivers the strength without the mass.
Match your application to standard sizes available at Buy A Length rather than ordering custom extrusions.
You’ll save time and cost while getting proven profiles that work.
Ready to order? Browse aluminium channel online at buyalength.com.au

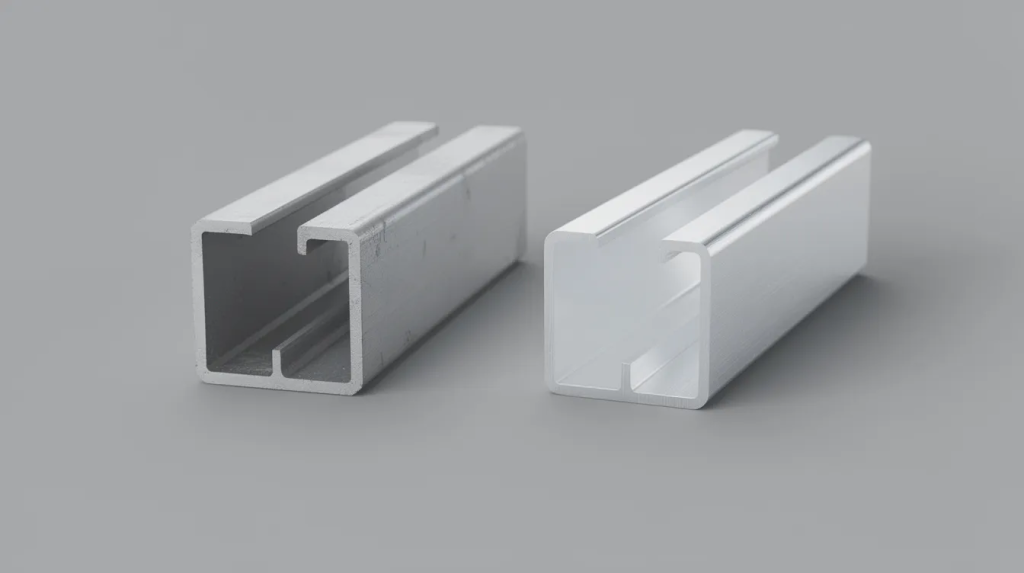

Aluminium Channel Finishes: Mill Finish vs Anodised & Others
Mill finish is the raw, uncoated surface straight from the extrusion press.
This is what many trades prefer for fabrication work where the channel will be hidden, painted later, or powder coated on site.
When to choose mill finish:
- Internal framing and cavity work
- Components that will receive secondary finishing
- Parts not visible in the final installation
- Budget-conscious projects where appearance isn’t critical
Anodised finishes provide a hard, scratch-resistant oxide layer that won’t flake or peel. Clear anodised maintains the natural aluminium appearance while adding durability.
Architectural colours like bronze and black anodised are available for visible trims where consistent appearance matters.
Aluminium channels can be anodized, powder-coated, or polished for aesthetic appeal and added protection against the elements.
Powder coated finishes can be specified for project orders—ideal for matching brand colours or façade schemes. These are typically made-to-order with longer lead times.
Buy A Length clearly labels products as mill finish or anodised on product pages.
For project-based finishing options or custom colours, contact customer service to discuss requirements.
Choosing the Right Aluminium Channel Size
Correct sizing ensures sufficient strength and a neat fit with glass, panels, or substrates. Getting it wrong means rework, delays, and wasted material.
Matching channel to panel thickness:
For glazing applications, the internal channel width must accommodate glass thickness plus gasket or silicone.
Aluminium glazing channels are available in sizes ranging from 25mm to 44mm to accommodate different glazing requirements, including single and double glazed applications. For a 10mm glass panel, allow 12–13mm internal width for gasket space.
Typical sizes stocked by Buy A Length include:
| Profile | Typical Use |
|---|---|
| 20 x 20 x 3 mm | Light trims, LED channels |
| 25 x 25 x 3 mm | General framing, cabinetry |
| 30 x 15 x 3 mm | Unequal channel for glazing |
| 40 x 40 x 4 mm | Heavier framing, structural |
For load-bearing or safety-critical applications, engineers should confirm suitability based on span length, load type, and deflection limits. Buy A Length provides material specifications—alloy, dimensions, weight per metre—but project-specific structural calculations are the specifier’s responsibility.
Product pages show cross-sectional diagrams with internal and external dimensions to help you quickly confirm the right profile.
Unsure between two close sizes? Contact the Buy A Length team for quick guidance—support staff deal with these selections daily and can point you to the right profile in minutes.
Ready to order? Browse aluminium channel online at buyalength.com.au
Ordering Aluminium Channel from Buy A Length
Buy A Length is built for fast, self-service ordering of aluminium channels online, with live pricing and stock visibility across Australia. No waiting for phone quotes or callbacks.
Simple ordering steps:
- Select the aluminium channel category
- Choose your profile and finish (e.g., mill finish U-channel)
- Enter required length(s) in millimetres and quantity
- Add to cart and checkout

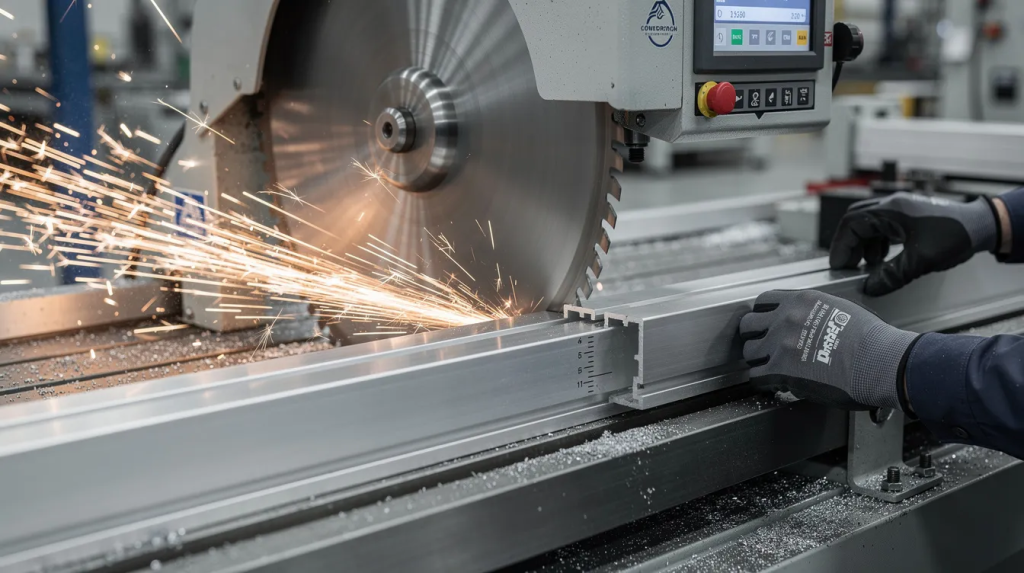

Custom cut-to-size service: Enter exact lengths and Buy A Length cuts from stock lengths to minimise waste and onsite labour. Stock lengths are typically 6.5m, with cut lengths reducing transport hassle and enabling tight fits in confined spaces.
Payment options:
- Credit card for immediate payment
- Trade accounts where applicable
- Invoices with clear line items for easy job costing
Fast dispatch: Orders for in-stock aluminium channels are cut and dispatched within 1–2 business days.
Delivery coverage extends across metro and regional Australia through national freight partners.
Ready to order? Browse aluminium channel online at buyalength.com.au
Why Buy Aluminium Channels from Buy A Length?
Buy A Length is a specialist Australian metal supplier focused on aluminium extrusions—channels, angles, and profiles that Australian trades and fabricators rely on daily.
Premium quality:
- Consistent extrusions from reputable mills
- Appropriate alloys and tempers for architectural and structural applications
- Careful handling and cutting to minimise surface damage on visible anodised sections
Range and availability:
- Wide selection of popular aluminium channel sizes in both equal and unequal configurations
- Reliable stock levels to avoid project delays
- Online visibility into what’s available before you commit
Custom cutting advantage:
- Accurate saw-cut lengths to your specifications
- Deburred where needed
- Reduces onsite labour, offcuts, and the need for specialised cutting equipment
Operational strengths:
- Efficient order processing
- Trackable deliveries
- Reliable packaging that protects channel edges and flanges during transport
Responsive customer service:
- Experienced staff who understand construction and fabrication requirements
- Available by phone or email for product selection and order optimisation
- Find the right solution faster with people who know the products
Buy aluminium channels at buyalength.com.au now, enjoy instant pricing, and fast dispatch.
FAQ
Even when you know exactly what aluminium channel you need, practical questions about ordering, cutting, and delivery still come up. Here are direct answers to the most common queries.
What tolerances apply to custom cut aluminium channels?
Buy A Length applies a cutting tolerance of typically ±2mm unless otherwise stated on the product page.
Dedicated metal-cutting saws with calibrated stops maintain consistent length accuracy across multiple pieces in the same order.
If you need tighter tolerances for critical components, contact the team to discuss requirements.
Also advise if parts will be mitred or machined later—cutting staff can allow extra length where needed.
Is there a minimum order quantity for aluminium channel?
Most aluminium channel profiles can be ordered as single lengths or one-off custom cut pieces with no large commercial minimums for online customers.
Price breaks may apply at higher quantities—check the pricing ladder on product pages or contact the team for bulk project pricing.
Full mill runs or project orders with special finishes or non-standard profiles may have higher minimums, handled as separate quotations.
Do you deliver aluminium channels nationwide in Australia?
Buy A Length ships aluminium channels to all Australian states and territories, including regional areas, through national freight partners.
Typical delivery timeframes:
- Metro areas: 1–3 business days
- Regional areas: 3–7 business days (subject to location and carrier)
Long lengths are packaged carefully with protective wrapping and strapping.
Inspect deliveries upon arrival and report any transport damage promptly.
Can I order both mill finish and anodised channels in the same order?
Yes—you can freely mix mill finish, anodised, and other aluminium products within a single online order.
Dispatch time may be driven by the longest-lead item, especially if anodised or special-finish channels are made-to-order.
Running to a tight program? Contact Buy A Length if you want in-stock mill finish channels sent immediately with special-finish items shipped later as a separate consignment.
How should I store aluminium channels on site before installation?
Store aluminium channels under cover, off the ground, and in a dry, well-ventilated area to avoid moisture staining and accidental damage.
Keep protective wrapping on anodised or finished channels for as long as possible.
Avoid contact with wet concrete, masonry dust, or aggressive cleaners—these can stain or damage finishes.
Careful handling preserves appearance and reduces rework, particularly on visible trims and glazing channels where surface marks are immediately noticeable.
